Original-C Automatic Clipping Machine (VAC 991)


Diaphragm Valve
Product Enquiry

Special Features

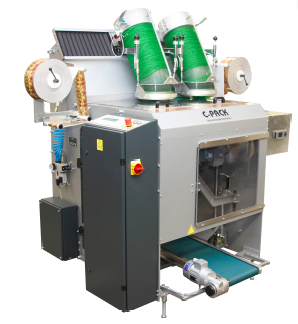

“Original-C“ automatic clipping machine to close and separate machine-usable nets fully automatically.

Download Leaflet VAC 991

Supplementary Equipment
  • Label dispenser
  • Thermo-barcode printer
  • Label transporting units
  • Intermittent discharge conveyor

Diaphragm Valve
Diaphragm Valve
Diaphragm Valve


Technical Data
  • Max. 40 Packs/min (depending on type of film band and product)
  • Power supply : 230/400 Volt N/PE, 50 Hz, approx. 1.5 kW (other connections on request)
  • Compressed air : 6 bar, approx. 9 I/pack
  • Machine weight : Approx. 900 kg
  • Package weights : 1,0 – 4,0 kg (depending on product size)
  • Length of PE-film band : variable
  • Outer net tube diameter : 140, 200 or 225 mm (others on request)
  • Infeed height : 1750 mm
Standard Equipment
  • Automatic net tube change for continuous operation
  • Net length infinitely adjustable
  • Net draw-off by means of two lifting tables with welding bars
  • Two transporting units for PE-film bands with cutting device
  • Length of the PE-film bands electronically adjustable
  • Microprocessor control with twolined clear text display
  • Memory for 25 programms
  • Net charging cone, net tube stand to allow a quick net tube exchange
