Original-C Automatic Clipping Machine (VAC 956)


Diaphragm Valve
Product Enquiry

Special Features

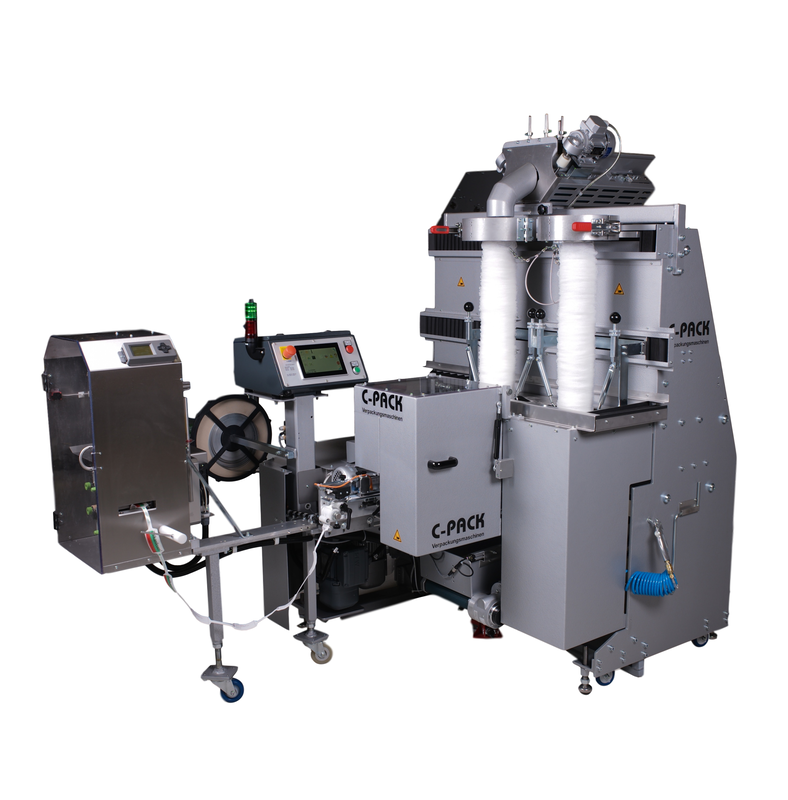

“Original-C“ automatic clipping machine to close and separate machine-usable nets fully automatically.

Download Leaflet VAC 956

Supplementary Equipment
  • Program storage
  • Label transporting units
  • Units for printing onto and transporting label tapes and/or punched labels thermo-barcode printers
  • Thermo-barcode printers
  • Intermittent discharge conveyor

Diaphragm Valve
Diaphragm Valve
Diaphragm Valve


Technical Data
  • Power supply : 230/400 Volt N/PE, 50 Hz, approx. 1.5 kW (other connections on request)
  • Machine weight : approx. 900 kg
  • Package weights : 0.5 – 2,5 kg (depending on size of product)
  • Length of label tape and punched labels : 120 – 160 mm

    • Clipping Strip

  • Thickness : approx. 0.35 – 0.45 mm
  • Width : 5.0 mm
  • Clip length : approx. 20 mm
  • Inner diameter of net tubes : 65 to 210 mm
  • Infeed height : 1610 mm
Standard Equipment
  • Pivotable 6 mm clipping head
  • Automatic net tube change for continuous operation
  • Net draw-off by means of driven net draw-off rollers
  • Net gathering system: length of net drawn off adjustable by means of a photo-cell
  • Microprocessor control with twolined clear text display
  • Net charging cone, net tube stand to allow a quick net tube exchange
